$52.42

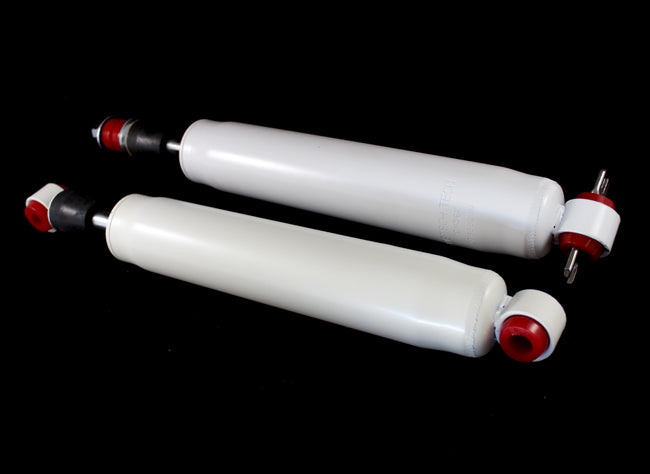

Doetsch Enterprises Twin-Tube Nitrogen Gas Shocks are designed to enhance the vehicles performance and provide quick response to road conditions. We recommend this shock for heavier truck applications or those...

Doetsch Enterprises Twin-Tube Nitrogen Gas Shocks are designed to enhance the vehicles performance and provide quick response to road conditions. We recommend this shock for heavier truck applications or those trucks that may require a boost in spring rate or cornering performance.

  • Large 1 3/8 Piston
  • Double Wall Construction
  • Double Welded Ends
  • Double Wiper Seal
  • 180 p.s.i. Nitrogen Gas Charged
  • Limited Lifetime Warranty against manufactures defects
  • See Specification Guide for lengths in this series
  • Chevy_Tire / Wheel Size Chart

    Application Lift Mac Tire
    Recommended
    Max Tire
    Possible
    Max Wheel
    Width
    Minimum
    Backspace
    Maximum
    Backspace
    00’-04’ 1500/2500HD 2wd / 4wd 6” 35x12.50 37x12.50 8-9.5 3.75 4.5
    02’-04’ 2500 Avalanche 4wd 6” 35x12.50 35x12.50 8-9 3.75 4.5
    99’-04’ 1500 / Tahoe / Yukon / Sub. 4wd 6” 35x12.50 35x12.50 8-9 3.75 4.5
    99’-04’ 1500 Silverado 2wd 7” 35x12.50 35x12.50 8 3.75 4.5
    99’-04’ 1500 Silverado 2wd 6” 33x12.50 33x12.50 8 3.75 4.5
    99’-04’ 1500 Silverado 2wd 3” 31x10.50 32x11.50 8 3.75 4.5
    88’-98’ 1500 Silverado 2wd 7” 35x12.50 35x12.50 8 3.5 4.5
    88’-98’ 1500 Silverado 2wd 6” 33x12.50 33x12.50 8 3.5 4.5
    88’-98’ 1500 Silverado 2wd 3” 31x10.50 32x11.50 8 3.5 4.5
    82’-03’ S10 / Blazer 2wd 6” 32x11.50 33x10.50 8 3.5 4.25
    82’-03’ S10 / Blazer 2wd 3” 30x9.50 30x10.50 8 3.5 4.25

    Ford_Tire / Wheel Size Chart

    Application Lift Max Tire
    Recommended
    Max Tire
    Possible
    Max Wheel
    Width
    Minimum
    Backspace

    Maximum
    Backspace

    04’ F150 4wd 7” 35x12.50 37x12.50 8-9 3.75 4.5
    97’-03’ F150 / Expedition 4wd 6” 35x12.50 35x12.50 8-9 3.5 4.5
    99’-04’ F250 / F350 4wd - ii 6” 39x14.50 40x14.50 9-12 3.75 4.5
    99’-04’ F250 / F350 / Excursion 4wd 6” 37x12.50 37x13.50 10 3.75 4.5
    99’-04’ F250 / F350 / Excursion 4wd 4” 35x12.50 35x13.50 8-10 3.75 4.5
    99’-04’ F250 / F350 / Excursion 4wd 3” 33x12.50 35x12.50 - iii 7-10 3.75 4.5
    80’-96’ F150 4wd 4” 33x12.50 33x12.50 8-9 3.25 4.25
    80’-96’ F150 4wd 6” 35x12.50 35x12.50 8-9 3.25 4.25
    04’ F150 2wd 7” 35x12.50 37x12.50 8 3.75 4.5
    04’ F150 2wd / 4wd 3” 33x12.50 35x12.50 8 3.5 4.5
    97’-03’ F150 2wd 6” 33x12.50 35x12.50 8 3.5 4.5
    97’-03’ F150 2wd 3” 32x11.50 33x12.50 8 3.5 4.5
    97’-03’ F150 2wd 2” 31x10.50 32x12.50 8 3.5 4.5
    01’-04’ Ranger 2wd 6” 33x10.50 33x12.50 8 3.5 4.5
    01’-04’ Ranger 2wd 3” 30x9.50 31x10.50 8 3.5 4.5
    01’-04’ Ranger 2wd 2” 30x9.50 31x10.50 8 3.5 4.5
    98’-00’ Ranger 2wd 6” 33x11.50 33x12.50 8 3.5 4.5
    98’-00’ Ranger 2wd 3” 30x9.50 31x10.50 8 3.5 4.5
    98’-00’ Ranger 2wd 2” 30x9.50 31x10.50 8 3.5 4.5
    89’-97’ Ranger 2wd 5” 31x10.50 32x11.50 7-8 3.25 4.25
    00’-04’ F250 / F350 / Excursion 2wd 6” 35x12.50 35x12.50 8-10 3.5 4.5
    86’-99’ F250 2wd 6” 35x12.50 35x12.50 8-10 3.5 4.5

    Dodge_Tire / Wheel Size Chart

    Application Lift Max Tire
    Recommended
    Max Tire
    Possible
    Max Wheel
    Width
    Minimum
    Backspace
    Maximum
    Backspace
    94’-01’ 1500 4wd 3” 33x12.50 35x12.50 8-10 3.5 4.5
    94‘-02’ 2500 4wd 2” 33x12.50 35x12.50 9-10 3.5 4.5
    02’-04’ 1500 2wd 7-6” 35x12.50 37x12.50 - iv 8-9 3.5 4.25
    02’-04’ 1500 2wd 3” 33x12.50 35x12.50 - v 8-9 3.5 4.25
    00’-01’ 1500 2wd 6” 35x12.50 35x12.50 8-9 3.25 4.5
    00’-01’ 1500 2wd 3” 32x11.50 33x12.50 8-9 3.25 4.5
    94’-99’ 1500 2wd 6” 35x12.50 33x12.50 8-9 3.25 4.5
    94’-99’ 1500 2wd 3” 32x11.50 35x12.50 8-9 3.25 4.5
    00’-03’ Dakota 2wd 3” 32x11.50 33x12.50 8-9 3.25 4.75
    97’-99’ Dakota 2wd 3” 32x11.50 33x12.50 8-9 3.25 4.75

    Toyota_Tire / Wheel Size Chart

    Application Lift Max Tire
    Possible
    Max Wheel
    Width
    Minimum
    Backspace
    Maximum
    Backspace
    99’-04’ Tundra 2wd / 4wd 3” 33x12.50 8-10 3.25 5
    95.5‘-04’ Tacoma 2wd / 4wd TRD 3” 33x12.50 7-9 3.25 5
    95.5’-04’ Tacoma 2wd 6” 33x12.50 7-8 3.5 4.5
    95.5’-04’ Tacoma 2wd 3” 31x11.50 7-8 3.5 4.5

    i - Sizes not recommended by Doetsch Enterprises. Sizes determined by installer and customer feedback
    ii - 6” Lift combined with 4” spring hangers
    iii - 35” Tires on stock rims with a max width of fewer than 8” and a minimum of 7”
    iv - Additional coil spacers are needed to achieve height
